Relays and interfacing

A45 Mini Interface

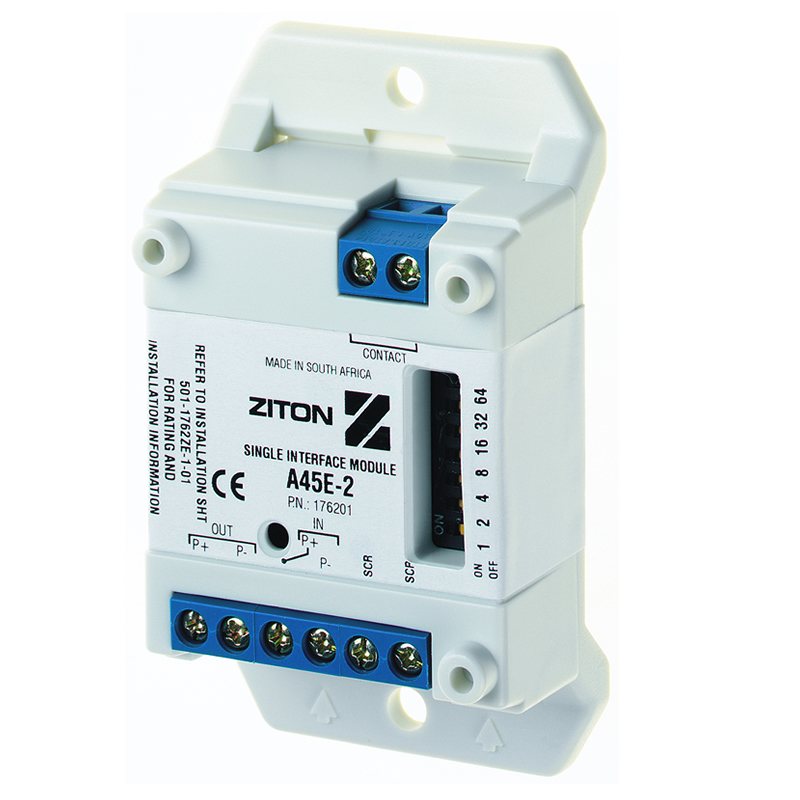

Ziton A45E-2 Addressable Interface Module

The A45E-2 addressable interface is designed for installation within the enclosures of equipment associated with fire detection systems. The unit is installed directly onto the ZP loop wiring, carries a system address and enables signals from associated equipment to be interfaced into the fire alarm system. Input signals are fully displayed at the control panel and can be programmed to activate any system output. By routing loop wiring and installing interfaces adjacent to input equipment, system integrity is decreased and the need for long spur wiring between equipment terminals and the fire alarm interface is eliminated.

Complying with EN54 Part 18 the A45E-2 can be installed singly, or used in groups to provide multiway inputs from equipment such as volt free, zonal outputs from conventional fire alarm systems or flow valves from sprinkler installations. Housed in a low profile, single width moulding the interface is designed to clip directly onto a standard DIN rail fixing or be installed in a SMB-DIN100 box (two unit capacity), or a SMB-DIN200 box (four unit capacity).

A red LED indicator positioned on the front moulding flashes when the interface has operated, providing clear identification of the input signal source. Installed as part of an analogue addressable system, up to 127 line devices (sensors, callpoints or interface units) can be connected to each of the control panel loops. All loop devices incorporate switch settings enabling them to be assigned a unique address, which is polled by the panel every two seconds.

Key Features:

  • Addressable input interface unit
  • Complies with EN54 Part18
  • Low profile
  • DIN rail mounted
  • Accepts normally open input circuits
  • Monitors input circuit wiring for open or short circuit faults

A50-E-2

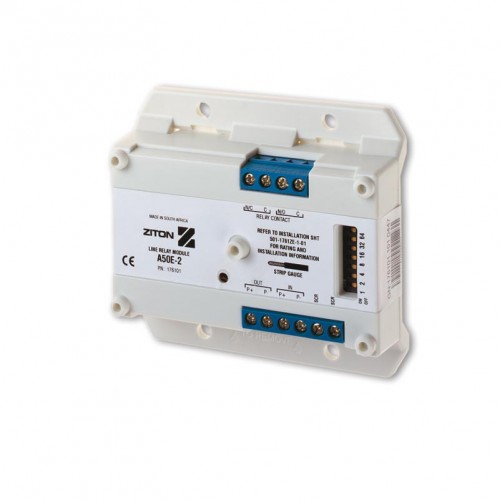

Ziton A50E-2 Addressable Line Relay Module

The A50E-2 is an addressable relay providing single pole, volt free, change over contacts. The unit is intended for installation within the equipment to be switched, thereby offering savings in installation costs when compared to long, auxiliary circuit, wiring runs out from the control panel. Complying with EN54 Part 18, the relay can be located anywhere on the two core ZP loop and is designed for power up or shut down of building services, for example air conditioning plant, in fire conditions. The unit is ideal for the control of associated system equipment such as door release circuits, or the emergency shutdown of high risk services, for instance gas or oil supply valves in boiler rooms.

The relay can be programmed to be activated by any single device, groups of devices or all system devices. All types of system input signals can be arranged to operate the A50E-2, which can include control panel indicators, zonal outputs, callpoints or sensors. Housed in a low profile, double width moulding the interface is designed to clip directly onto a standard DIN rail fixing or be installed in a SMB-DIN100 box (one unit capacity), or a SMB-DIN200 box (two unit capacity).

A red LED indicator positioned on the front moulding flashes when the interface has operated, providing clear identification of the input signal source. Installed as part of an analogue addressable system, up to 127 line devices (sensors, callpoints or interface units) can be connected to each of the control panel loops. All loop devices incorporate switch settings enabling them to be assigned a unique address, which is polled by the panel every two seconds.

Key Features:

  • Addressable interface unit
  • Complies with EN54 Part18
  • Low profile
  • DIN rail mounted
  • Loop wired – adjacent to equipment to be switched
  • Operated from any combination of input addresses
  • Volt free, change over contacts

A51E-1

Ziton A51E-1 Addressable Mains Relay Module

The A51E is an addressable relay providing double pole, volt free, change over contacts, rated to switch local mains supplies. The unit is intended for installation within the equipment to be switched, thereby offering savings in installation costs when compared to long, auxiliary circuit, wiring runs out from the control panel. Complying with EN54 Part 18, the relay can be located anywhere on the two core ZP loop and is designed for power up or shut down of the mains electrical supply to ancillary equipment The unit is ideal for the control of associated system equipment such as mains fed magnetic door release circuits, extract fans and dampers.

The relay can be programmed to be activated by any single device, groups of devices or all system devices. All types of system input signals can be arranged to operate the A51E, which can include control panel indicators, zonal outputs, callpoints or sensors. Terminals 1-2 and 5-6 provide normally closed relay connections (opening on alarm), terminals 2-3 and 4-5 provide normally open relay connections (closing on alarm). Housed in a low profile moulding, the relay is designed to clip directly onto a standard DIN 35 mounting rail or equipment panel chassis. Alternatively the relay can be installed in a SMB-DIN100 box (one unit capacity) or SMB-DIN200 box (two unit capacity) – care should be taken to prohibit casual entry into the enclosure.

A red LED indicator positioned on the front moulding flashes when the interface contacts have operated. For system test and commissioning the relay contacts can be operated manually, enabling control circuits to be tested. Installed as part of an analogue addressable system, up to 127 line devices (sensors, callpoints or interface units) can be connected to each of the control panel loops. All loop devices incorporate switch settings enabling them to be assigned a unique address, which is polled by the panel every two seconds.

Key Features:

  • Addressable mains rated unit
  • Complies with EN54 Part 18
  • Miniature size
  • DIN 35 mounting rail fixing
  • Loop wired – adjacent or internal to equipment to be switched
  • Operated from any combination of input addresses
  • Double pole, volt free change over contacts
